Home > Products > AC/DC Converters

AC/DC Converters

Product Search >>
Part No. Image Power(W) Input Volt(Vac/dc) Output Volt(vdc) Isolation Volt(Vac/dc) Efficiency(%) Package Size(mm) Certificate/
Standards		 Datasheet
/3D		 Samples Request
FA2-220SXXN2
85-305/120-430 3000/- 33.8*22.2*15.3
FA2-220S24N2 2 85-305/120-430 3000/- 78 33.8*22.2*15.3 -
FA2-220S12N2 2 85-305/120-430 3000/- 75 33.8*22.2*15.3 -
FA2-220S05N2 2 85-305/120-430 3000/- 70 33.8*22.2*15.3 CE,UL,RoHS,FCC
FA2-220S3V3N2 2 85-305/120-430 3000/- 68 33.8*22.2*15.3 -
FA3-220SXXA2N3
85-265/120-380 3600/- 37.7*18.7*13.6
FA3-220S24A2N3 3 85-265/120-380 3600/- 77 37.7*18.7*13.6 CE,RoHS
FA3-220S15A2N3 3 85-265/120-380 3600/- 75 37.7*18.7*13.6 CE,RoHS
FA3-220S13A2N3 3 85-265/120-380 3600/- 75 37.7*18.7*13.6 CE,RoHS
FA3-220S12A2N3 3 85-265/120-380 3600/- 75 37.7*18.7*13.6 CE,RoHS
FA3-220S09A2N3 3 85-265/120-380 3600/- 73 37.7*18.7*13.6 CE,RoHS
FA3-220S05A2N3 3 85-265/120-380 3600/- 71 37.7*18.7*13.6 CE,RoHS
FA3-220S3V8A2N3 2.3 85-265/120-380 3600/- 68 37.7*18.7*13.6 CE,RoHS
FA3-220S3V3A2N3 2 85-265/120-380 3600/- 67 37.7*18.7*13.6 CE,RoHS

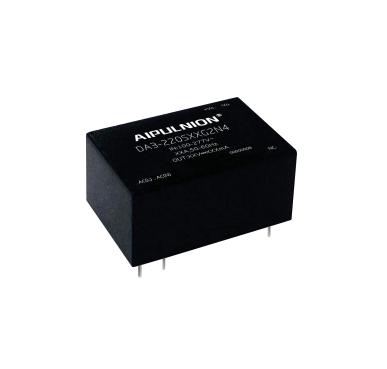

DA3-220SXXG2N4
85-305/120-430 4000/- 37.0*24.5*18
DA3-220S24G2N4 3 85-305/120-430 4000/- 81 37.0*24.5*18 -
DA3-220S12G2N4 3 85-305/120-430 4000/- 74 37.0*24.5*18 -
DA3-220S05G2N4 3 85-305/120-430 4000/- 71 37.0*24.5*18 -
FA3-220SXXG2D4(-T)(-TS)
85-305/100-430 4000/- 25.4*25.4*17.6
FA3-220S24G2D4 3 85-305/100-430 4000/- 76 25.4*25.4*17.6 -
FA3-220S15G2D4 3 85-305/100-430 4000/- 74 25.4*25.4*17.6 -
FA3-220S12G2D4 3 85-305/100-430 4000/- 74 25.4*25.4*17.6 -
FA3-220S05G2D4 3 85-305/100-430 4000/- 70 25.4*25.4*17.6 -
FA3-220S3V3G2D4 3 85-305/100-430 4000/- 68 25.4*25.4*17.6 -
FA3-220SXXG2N3
85-265/120-380 3000/- 35.5*21.5*17.0
FA3-220S24G2N3 3 85-265/120-380 3000/- 78 35.5*21.5*17.0 -
FA3-220S12G2N3 3 85-265/120-380 3000/- 76 35.5*21.5*17.0 -
FA3-220S05G2N3 3 85-265/120-380 3000/- 72 35.5*21.5*17.0 -
FA3-300SXXY2N3(-T)(-TS)
90-528/100-745 3600/- 50.8*25.4*15.6
FA3-300S24Y2N3 3 90-528/100-745 3600/- 75 50.8*25.4*15.6 -
FA3-300S15Y2N3 3 90-528/100-745 3600/- 73 50.8*25.4*15.6 -
FA3-300S12Y2N3 3 90-528/100-745 3600/- 72 50.8*25.4*15.6 -
FA3-300S05Y2N3 3 90-528/100-745 3600/- 70 50.8*25.4*15.6 -
DA3-220SXXG9N3
85-305/120-430 3000/- 26.4*17.6*11.0
DA3-220S24G9N3 3 85-305/120-430 3000/- 82 26.4*17.6*11.0 -
DA3-220S15G9N3 3 85-305/120-430 3000/- 79 26.4*17.6*11.0 -
DA3-220S12G9N3 3 85-305/120-430 3000/- 79 26.4*17.6*11.0 -
DA3-220S09G9N3 3 85-305/120-430 3000/- 77 26.4*17.6*11.0 -
DA3-220S05G9N3 3 85-305/120-430 3000/- 72 26.4*17.6*11.0 -
DA3-220S3V3G9N3 2 85-305/120-430 3000/- 69 26.4*17.6*11.0 -
FA3-220SXXB9D4(-1)
85-265/120-380 3000/- 35.0*18.0*10.0
FA3-220S24B9D4(-1) 3 85-265/120-380 3000/- 77 35.0*18.0*10.0 -
FA3-220S15B9D4(-1) 3 85-265/120-380 3000/- 76 35.0*18.0*10.0 -
FA3-220S12V6B9D4(-1) 3 85-265/120-380 3000/- 76 35.0*18.0*10.0 -
FA3-220S12B9D4(-1) 3 85-265/120-380 3000/- 73 35.0*18.0*10.0 -
FA3-220S09B9D4(-1) 3 85-265/120-380 3000/- 73 35.0*18.0*10.0 -
FA3-220S05B9D4(-1) 3 85-265/120-380 3000/- 72 35.0*18.0*10.0 -
FA3-220S3V3B9D4(-1) 3 85-265/120-380 3000/- 68 35.0*18.0*10.0 -
A03-C1SXXM
85-305/70-430 - 16.2*18.2*9.5
A03-C1S12M 3 85-305/70-430 - 73 19.16*19.7*9.5 -
A03-C1S05M 1 85-305/70-430 - 57 19.16*19.7*9.5 -
DA5-220SXXG2N4
85-305/120-430 4000/- 37.0*24.5*18
DA5-220S24G2N4 5 85-305/120-430 4000/- 82 37.0*24.5*18 -
DA5-220S15G2N4 5 85-305/120-430 4000/- 79 37.0*24.5*18 -
DA5-220S12G2N4 5 85-305/120-430 4000/- 79 37.0*24.5*18 -
DA5-220S05G2N4 5 85-305/120-430 4000/- 73 37.0*24.5*18 -
FA5-220DXXC2N4
85-305/120-430 4000/- 48.5*36.0*20.5
FA5-220D24C2N4 5 85-305/120-430 4000/- 80 48.5*36.0*20.5 -
FA5-220D15C2N4 5 85-305/120-430 4000/- 78 48.5*36.0*20.5 -
FA5-220D12C2N4 5 85-305/120-430 4000/- 76 48.5*36.0*20.5 -
FA5-220D05C2N4 5 85-305/120-430 4000/- 74 48.5*36.0*20.5 -

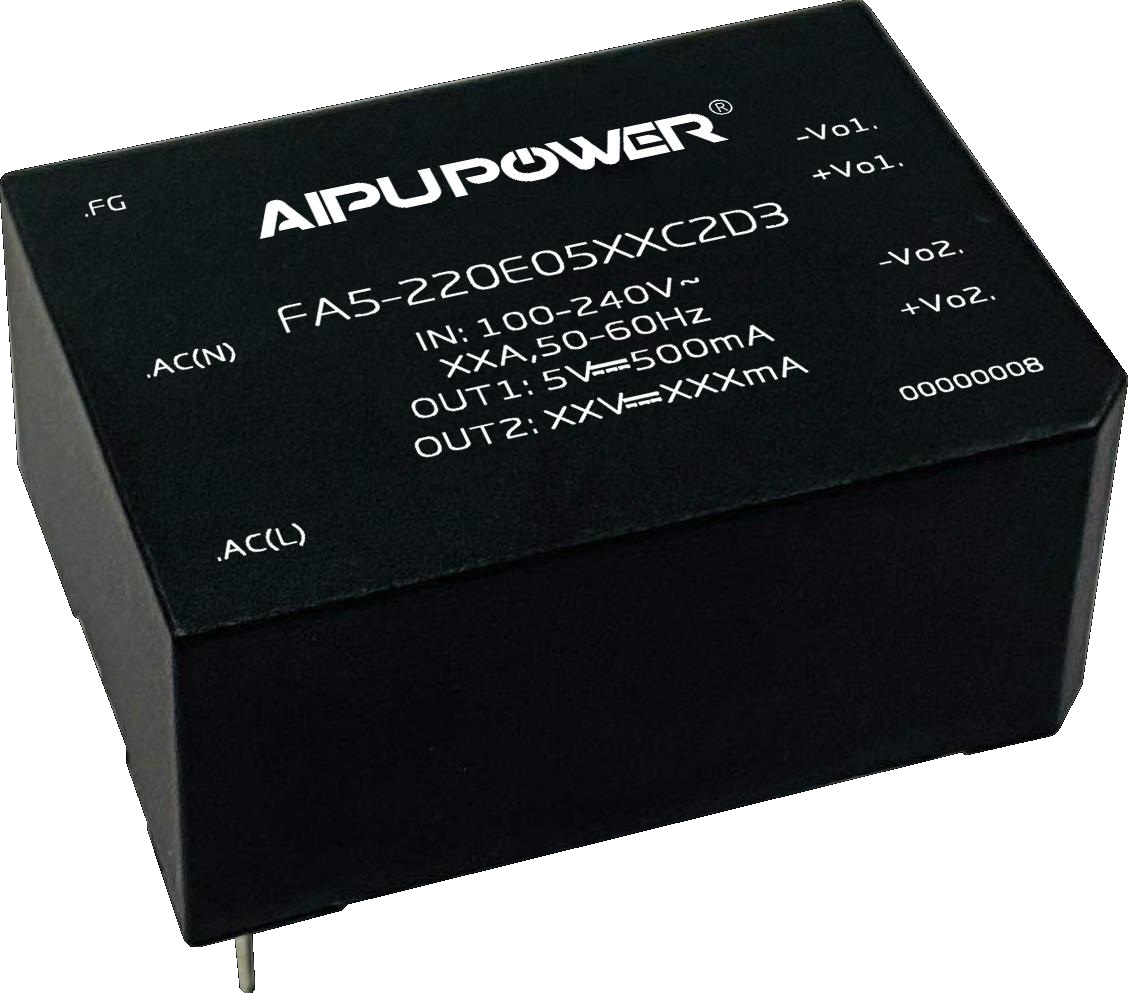

FA5-220E05XXC2N4
85-265/120-380 4000/- 48.5*36.0*20.5
FA5-220E0524C2N4 5 85-265/120-380 4000/- 77 48.5*36.0*20.5 -
FA5-220E0524C2N4 5 85-265/120-380 4000/- 77 48.5*36.0*20.5 -
FA5-220E0512C2N4 5 85-265/120-380 4000/- 75 48.5*36.0*20.5 -
FA5-220E0512C2N4 5 85-265/120-380 4000/- 75 48.5*36.0*20.5 -
FA5-220E0505C2N4 5 85-265/120-380 4000/- 74 48.5*36.0*20.5 -
FA5-220HXXXXXXC2N3
85-265/120-380 4000/- 48.5*36.0*20.5
FA5-220H052424C2N3 5 85-265/120-380 4000/- 75 48.5*36.0*20.5 -
FA5-220H052424C2N3 5 85-265/120-380 4000/- 75 48.5*36.0*20.5 -
FA5-220H051212C2N3 5 85-265/120-380 4000/- 73 48.5*36.0*20.5 -
FA5-220H051212C2N3 5 85-265/120-380 4000/- 73 48.5*36.0*20.5 -
FA5-220H050505C2N3 5 85-265/120-380 4000/- 70 48.5*36.0*20.5 -
FA5-220H050505C2N3 5 85-265/120-380 4000/- 70 48.5*36.0*20.5 -
FA5-220SXXC2D4
85-305/120-430 4000/- 48.5*36.0*20.5
FA5-220S24C2D4 5 85-305/120-430 4000/- 81 48.5*36.0*20.5 CE,RoHS
FA5-220S15C2D4 5 85-305/120-430 4000/- 81 48.5*36.0*20.5 CE,RoHS
FA5-220S12C2D4 5 85-305/120-430 4000/- 80 48.5*36.0*20.5 CE,RoHS
FA5-220S09C2D4 5 85-305/120-430 4000/- 74 48.5*36.0*20.5 CE,RoHS
FA5-220S05C2D4 5 85-305/120-430 4000/- 72 48.5*36.0*20.5 CE,RoHS
FA5-220S3V3C2D4 3 85-305/120-430 4000/- 67 48.5*36.0*20.5 CE,RoHS
FA5-220SXXG2D4(-T)(-TS)
85-305/120-430 4000/- 25.4*25.4*17.6
FA5-220S24G2D4 5 85-305/120-430 4000/- 78 25.4*25.4*17.6 CE
FA5-220S15G2D4 5 85-305/120-430 4000/- 76 25.4*25.4*17.6 CE
FA5-220S12V5G2D4 5 85-305/120-430 4000/- 76 25.4*25.4*17.6 CE
FA5-220S12G2D4 5 85-305/120-430 4000/- 75 25.4*25.4*17.6 CE
FA5-220S05G2D4 5 85-305/120-430 4000/- 72 25.4*25.4*17.6 CE
FA5-220S3V3G2D4 3.3 85-305/120-430 4000/- 69 25.4*25.4*17.6 CE
FA5-220SXXG2N3
85-265/120-380 3000/- 39.5*24.5*19.0
FA5-220S24G2N3 5 85-265/120-380 3000/- 80 39.5*24.5*19.0 -
FA5-220S12G2N3 5 85-265/120-380 3000/- 79 39.5*24.5*19.0 -
FA5-220S05G2N3 5 85-265/120-380 3000/- 73 39.5*24.5*19.0 -
FA5-220SXXY2D4
90-265/127-375 4000/- 50.8*25.4*15.16
FA5-220S24Y2D4 5 90-265/127-375 4000/- 79 50.8*25.4*15.16 -
FA5-220S15Y2D4 5 90-265/127-375 4000/- 78 50.8*25.4*15.16 -
FA5-220S12Y2D4 5 90-265/127-375 4000/- 78 50.8*25.4*15.16 -
FA5-220S09Y2D4 5 90-265/127-375 4000/- 74 50.8*25.4*15.16 -
FA5-220S05Y2D4 5 90-265/127-375 4000/- 71 50.8*25.4*15.16 -
FA5-220S3V3Y2D4 4.1 90-265/127-375 4000/- 69 50.8*25.4*15.16 -
FA5-220SXXY2N4
85-305/120-430 4000/- 50.8*25.4*15.16
FA5-220S24Y2N4 5 85-305/120-430 4000/- 84 50.8*25.4*15.16 -
FA5-220S15Y2N4 5 85-305/120-430 4000/- 83 50.8*25.4*15.16 -
FA5-220S12Y2N4 5 85-305/120-430 4000/- 82 50.8*25.4*15.16 -
FA5-220S05Y2N4 5 85-305/120-430 4000/- 76 50.8*25.4*15.16 -
FA5-220S3V3Y2N4 4.1 85-305/120-430 4000/- 73 50.8*25.4*15.16 -
DA5-220SXXG9N3
85-305/120-430 3000/- 26.4*17.6*11.0
DA5-220S24G9N3 5 85-305/120-430 3000/- 82 26.4*17.6*11.0 -
DA5-220S15G9N3 5 85-305/120-430 3000/- 79 26.4*17.6*11.0 -
DA5-220S12G9N3 5 85-305/120-430 3000/- 79 26.4*17.6*11.0 -
DA5-220S09G9N3 5 85-305/120-430 3000/- 74 26.4*17.6*11.0 -
DA5-220S05G9N3 5 85-305/120-430 3000/- 70 26.4*17.6*11.0 -
DA5-220S3V3G9N3 5 85-305/120-430 3000/- 65 26.4*17.6*11.0 -
DA5-300SXXG9N4(-1)
85-528/120-746 4000/- 44.5*25.0*13.0
DA5-300S24G9N4(-1) 5 85-528/120-746 4000/- 80 44.5*25.0*13.0 -
DA5-300S15G9N4(-1) 5 85-528/120-746 4000/- 78 44.5*25.0*13.0 -
DA5-300S12G9N4(-1) 5 85-528/120-746 4000/- 78 44.5*25.0*13.0 -
DA5-300S05G9N4(-1) 5 85-528/120-746 4000/- 76 44.5*25.0*13.0 -
FA5-220SXXB9D4(-1)
90-265/127-380 3000/- 42.0*20.0*13.0
FA5-220S24B9D4(-1) 5 90-265/127-380 3000/- 82 42.0*20.0*13.0 -
FA5-220S15B9D4(-1) 5 90-265/127-380 3000/- 79 42.0*20.0*13.0 -
FA5-220S12B9D4(-1) 5 90-265/127-380 3000/- 79 42.0*20.0*13.0 -
FA5-220S09B9D4(-1) 5 90-265/127-380 3000/- 77 42.0*20.0*13.0 -
FA5-220S5V25B9D4(-1) 5 90-265/127-380 3000/- 72 42.0*20.0*13.0 -
FA5-220S05B9D4(-1) 5 90-265/127-380 3000/- 71 42.0*20.0*13.0 -
FA5-220S3V3B9D4(-1) 3 90-265/127-380 3000/- 67 42.0*20.0*13.0 -
A05-C4SXXD
85-305/70-430 3600/- 26.4*17.5*12.0
A05-C4S24D 5 85-305/70-430 3600/- 80 26.4*17.5*12.0 -
A05-C4S15D 5 85-305/70-430 3600/- 78 26.4*17.5*12.0 -
A05-C4S12V1D 5 85-305/70-430 3600/- 78 26.4*17.5*12.0 -
A05-C4S12D 5 85-305/70-430 3600/- 78 26.4*17.5*12.0 -
A05-C4S09D 5 85-305/70-430 3600/- 76 26.4*17.5*12.0 -
A05-C4S05D 5 85-305/70-430 3600/- 74 26.4*17.5*12.0 -
A05-C4S03V3D 3.3 85-305/70-430 3600/- 68 26.4*17.5*12.0 -
DA5-220EXXXXGA9N4
85-305/120-430 3600/- 26.4*17.6*11.0
DA5-220E0524GA9N4 5 85-305/120-430 3600/- 78 26.4*17.6*11.0 -
DA5-220E0524GA9N4 5 85-305/120-430 3600/- 78 26.4*17.6*11.0 -
DA5-220E0512GA9N4 5 85-305/120-430 3600/- 78 26.4*17.6*11.0 -
DA5-220E0512GA9N4 5 85-305/120-430 3600/- 78 26.4*17.6*11.0 -
FA6-220SXXD2
85-305/120-430 3750/- 39.0*25.0*22.0
FA6-220S24D2 6 85-305/120-430 3750/- 84 39.0*25.0*22.0 CE,RoHS
FA6-220S16V5D2 6 85-305/120-430 3750/- 82 39.0*25.0*22.0 CE,RoHS
FA6-220S15D2 6 85-305/120-430 3750/- 82 39.0*25.0*22.0 CE,RoHS
FA6-220S12D2 6 85-305/120-430 3750/- 80 39.0*25.0*22.0 CE,RoHS
FA6-220S09D2 6 85-305/120-430 3750/- 78 39.0*25.0*22.0 CE,RoHS
FA6-220S05D2 6 85-305/120-430 3750/- 75 39.0*25.0*22.0 CE,RoHS
FA6-220S3V3D2 6 85-305/120-430 3750/- 71 39.0*25.0*22.0 CE,RoHS
FA8-220SXXD2
85-265/120-380 3000/- 39.0*25.0*22.0
FA8-220S24D2 8 85-265/120-380 3000/- 87 39.0*25.0*22.0 -
FA8-220S12D2 8 85-265/120-380 3000/- 83 39.0*25.0*22.0 -
FA8-220S05D2 8 85-265/120-380 3000/- 81 39.0*25.0*22.0 -
FA8-220S3V8D2 6.5 85-265/120-380 3000/- 80 39.0*25.0*22.0 -
FA8-220S3V6D2 6.5 85-265/120-380 3000/- 80 39.0*25.0*22.0 -
FA8-220S3V3D2 6.6 85-265/120-380 3000/- 80 39.0*25.0*22.0 -
FA8-220SXXD3
85-265/120-380 3000/- 39.0*25.0*22.0
FA8-220S3V8D3 8 85-265/120-380 3000/- 80 39.0*25.0*22.0 -
FA8-220S3V6D3 8 85-265/120-380 3000/- 80 39.0*25.0*22.0 -
FA8-220S3V3D3 8 85-265/120-380 3000/- 80 39.0*25.0*22.0 -
DA10-220SXXP2D4
90-310/127-438 3100/- 53.8*28.8*19.0
DA10-220S24P2D4 10 90-310/127-438 3100/- 83 53.8*28.8*19.0 CE,RoHS
DA10-220S15P2D4 10 90-310/127-438 3100/- 82 53.8*28.8*19.0 -
DA10-220S12P2D4 10 90-310/127-438 3100/- 82 53.8*28.8*19.0 CE,RoHS
DA10-220S09P2D4 10 90-310/127-438 3100/- 81 53.8*28.8*19.0 -
DA10-220S05P2D4 10 90-310/127-438 3100/- 74 53.8*28.8*19.0 CE,RoHS
FA10-220E05XXE2D4
85-265/120-380 4000/- 55.0*45.0*20.5
FA10-220E0524E2D4 10 85-265/120-380 4000/- 83 55.0*45.0*20.5 -
FA10-220E0524E2D4 10 85-265/120-380 4000/- 83 55.0*45.0*20.5 -
FA10-220E0512E2D4 10 85-265/120-380 4000/- 78 55.0*45.0*20.5 -
FA10-220E0512E2D4 10 85-265/120-380 4000/- 78 55.0*45.0*20.5 -
FA10-220E0505E2D4 10 85-265/120-380 4000/- 75 55.0*45.0*20.5 -
FA10-220SXXC2N3
85-265/120-380 3000/- 48.5*36.0*20.5
FA10-220S24C2N3 10.8 85-265/120-380 3000/- 84 48.5*36.0*20.5 -
FA10-220S15C2N3 10 85-265/120-380 3000/- 83 48.5*36.0*20.5 -
FA10-220S12C2N3 10 85-265/120-380 3000/- 82 48.5*36.0*20.5 -
FA10-220S05C2N3 10 85-265/120-380 3000/- 77 48.5*36.0*20.5 -
FA10-220SXXE2D4
85-305/100-430 4000/- 55.0*45.0*21.0
FA10-220S28E2D4 10 85-305/100-430 4000/- 82 55.0*45.0*21.0 CE,RoHS
FA10-220S24E2D4 10 85-305/100-430 4000/- 82 55.0*45.0*21.0 CE,RoHS
FA10-220S15E2D4 10 85-305/100-430 4000/- 82 55.0*45.0*21.0 CE,RoHS
FA10-220S12E2D4 10 85-305/100-430 4000/- 82 55.0*45.0*21.0 CE,RoHS
FA10-220S09E2D4 10 85-305/100-430 4000/- 79 55.0*45.0*21.0 CE,RoHS
FA10-220S05E2D4 7.5 85-305/100-430 4000/- 73 55.0*45.0*21.0 CE,RoHS
FA10-220S3V3E2D4 5 85-305/100-430 4000/- 73 55.0*45.0*21.0 CE,RoHS
FA10-220SXXG2N4(-T)(-TS)
85-305/120-430 4000/- 40.0*25.4*21.0
FA10-220S24G2N4 10 85-305/120-430 4000/- 83 40.0*25.4*21.0 CE,CB
FA10-220S15G2N4 10 85-305/120-430 4000/- 82 40.0*25.4*21.0 CE,CB
FA10-220S12V5G2N4 10 85-305/120-430 4000/- 82 40.0*25.4*21.0 CE,CB
FA10-220S12G2N4 10 85-305/120-430 4000/- 82 40.0*25.4*21.0 CE,CB
FA10-220S05G2N4 10 85-305/120-430 4000/- 76 40.0*25.4*21.0 CE,CB
FA10-220S3V3G2N4 8.6 85-305/120-430 4000/- 73 40.0*25.4*21.0 CE,CB
FA10-220SXXGA2N4(-T)(-TS)
85-305/120-430 4000/- 47.6*26.8*23.5
FA10-220S24GA2N4 10 85-305/120-430 4000/- 84 47.6*26.8*23.5 -
FA10-220S15GA2N4 10 85-305/120-430 4000/- 82 47.6*26.8*23.5 -
FA10-220S12V5GA2N4 10 85-305/120-430 4000/- 82 47.6*26.8*23.5 -
FA10-220S12GA2N4 10 85-305/120-430 4000/- 82 47.6*26.8*23.5 -
FA10-220S05GA2N4 10 85-305/120-430 4000/- 76 47.6*26.8*23.5 -
FA10-220S3V3GA2N4 8.6 85-305/120-430 4000/- 73 47.6*26.8*23.5 -
FA10-220SXXY2D4(-T)(-TS)
85-305/120-430 4000/- 50.8*25.4*15.16
FA10-220S24Y2D4 10 85-305/120-430 4000/- 84 50.8*25.4*15.16 CE,RoHS
FA10-220S12Y2D4 10 85-305/120-430 4000/- 83 50.8*25.4*15.16 CE,RoHS
FA10-220S05Y2D4 10 85-305/120-430 4000/- 78 50.8*25.4*15.16 CE,RoHS
FA10-220S4V8Y2D4 10 85-305/120-430 4000/- 78 50.8*25.4*15.16 CE,RoHS
FA10-380SXXF2N4(-T)(-TS)
85-528/120-745 4000/- 62.0*45.0*22.5
FA10-380S24F2N4 10 85-528/120-745 4000/- 82 62.0*45.0*22.5 -
FA10-380S12F2N4 10 85-528/120-745 4000/- 80 62.0*45.0*22.5 -
FA10-380S05F2N4 10 85-528/120-745 4000/- 76 62.0*45.0*22.5 -
UA10-220SXXP2D(-T)(-TS)
90-265/127-380 3000/- 53.8*28.8*19.0
UA10-220S24P2D 10 90-265/127-380 3000/- 83 53.8*28.8*19.0 -
UA10-220S15P2D 10 90-265/127-380 3000/- 82 53.8*28.8*19.0 -
UA10-220S12V5P2D 10 90-265/127-380 3000/- 82 53.8*28.8*19.0 -
UA10-220S12P2D 10 90-265/127-380 3000/- 81 53.8*28.8*19.0 CE,RoHS
UA10-220S09P2D 10 90-265/127-380 3000/- 81 53.8*28.8*19.0 -
UA10-220S06P2D 10 90-265/127-380 3000/- 75 53.8*28.8*19.0 -
UA10-220S5V3P2D 10 90-265/127-380 3000/- 75 53.8*28.8*19.0 -
UA10-220S05P2D 10 90-265/127-380 3000/- 74 53.8*28.8*19.0 CE,RoHS
UA10-220S3V3P2D 10 90-265/127-380 3000/- 74 53.8*28.8*19.0 -
DA10-300SXXG9N4
90-528/127-746 4000/- 45.0*22.0*16.0
DA10-300S24G9N4 10 90-528/127-746 4000/- 82 45.0*22.0*16.0 -
DA10-300S12G9N4 10 90-528/127-746 4000/- 81 45.0*22.0*16.0 -
DA10-300S05G9N4 10 90-528/127-746 4000/- 77 45.0*22.0*16.0 -
DA15-220E1205F2N3
85-265/120-380 3000/- 62.0*45.0*22.5
DA15-220E1205F2N3 14 85-265/120-380 3000/- 83 62.0*45.0*22.5 -
DA15-220E1205F2N3 14 85-265/120-380 3000/- 83 62.0*45.0*22.5 -
FA15-220E05XXF2D3
85-265/120-380 3000/- 62.0*45.0*22.5
FA15-220E0524F2D3 15 85-265/120-380 3000/- 82 62.0*45.0*22.5 -
FA15-220E0524F2D3 15 85-265/120-380 3000/- 82 62.0*45.0*22.5 -
FA15-220E0512F2D3 15 85-265/120-380 3000/- 81 62.0*45.0*22.5 -
FA15-220E0512F2D3 15 85-265/120-380 3000/- 81 62.0*45.0*22.5 -
FA15-220EXXXXF2D4
85-265/120-380 4000/- 62.0*45.0*22.5
FA15-220E12F2D4 15 85-265/120-380 4000/- 84 62.0*45.0*22.5 CE
FA15-220E0524F2D4 15 85-265/120-380 4000/- 77 62.0*45.0*22.5 CE
FA15-220E0524F2D4 15 85-265/120-380 4000/- 78 62.0*45.0*22.5 CE
FA15-220E0515F2D4 15 85-265/120-380 4000/- 78 62.0*45.0*22.5 CE
FA15-220E0515F2D4 15 85-265/120-380 4000/- 78 62.0*45.0*22.5 CE
FA15-220E0512F2D4 15 85-265/120-380 4000/- 77 62.0*45.0*22.5 CE
FA15-220E0512F2D4 15 85-265/120-380 4000/- 77 62.0*45.0*22.5 CE
FA15-220H05XXXXF2D4
85-265/120-380 4000/- 62.0*45.0*22.5
FA15-220H052424F2D4 15 85-265/120-380 4000/- 83 62.0*45.0*22.5 -
FA15-220H052424F2D4 15 85-265/120-380 4000/- 83 62.0*45.0*22.5 -
FA15-220H051515F2D4 15 85-265/120-380 4000/- 82 62.0*45.0*22.5 -
FA15-220H051515F2D4 15 85-265/120-380 4000/- 82 62.0*45.0*22.5 -
FA15-220H051212F2D4 15 85-265/120-380 4000/- 81 62.0*45.0*22.5 -
FA15-220H051212F2D4 15 85-265/120-380 4000/- 81 62.0*45.0*22.5 -
FA15-220H050505F2D4 15 85-265/120-380 4000/- 80 62.0*45.0*22.5 -
FA15-220H050505F2D4 15 85-265/120-380 4000/- 80 62.0*45.0*22.5 -
FA15-220SXXB9N3(-1)
85-305/120-430 4000/- 45.0*23.0*15.0
FA15-220S24B9N3(-1) 15 85-305/120-430 4000/- 85 45.0*23.0*15.0 CE
FA15-220S12V7B9N3(-1) 15 85-305/120-430 4000/- 82 45.0*23.0*15.0 CE
FA15-220S12B9N3(-1) 15 85-305/120-430 4000/- 83 45.0*23.0*15.0 CE
FA15-220S05B9N3(-1) 15 85-305/120-430 4000/- 77 45.0*23.0*15.0 CE
FA15-220S3V3B9N3(-1) 10 85-305/120-430 4000/- 76 45.0*23.0*15.0 CE
FA15-220SXXE2D4
85-265/120-380 3800/- 55.0*45.0*20.5
FA15-220S24E2D4 15 85-265/120-380 3800/- 82 55.0*45.0*20.5 -
FA15-220S15E2D4 15 85-265/120-380 3800/- 81 55.0*45.0*20.5 -
FA15-220S12E2D4 15 85-265/120-380 3800/- 81 55.0*45.0*20.5 -
FA15-220S06E2D4 15 85-265/120-380 3800/- 79 55.0*45.0*20.5 -
FA15-220S05E2D4 15 85-265/120-380 3800/- 75 55.0*45.0*20.5 -
FA15-220SXXF2D4(-T)(-TS)
85-265/120-380 4000/- 62.0*45.0*22.5
FA15-220S24F2D4 15 85-265/120-380 4000/- 86 62.0*45.0*22.5 CE,RoHS
FA15-220S20F2D4 15 85-265/120-380 4000/- 85 62.0*45.0*22.5 -
FA15-220S15F2D4 15 85-265/120-380 4000/- 85 62.0*45.0*22.5 CE,RoHS
FA15-220S12F2D4 15 85-265/120-380 4000/- 84 62.0*45.0*22.5 CE,RoHS
FA15-220S09F2D4 15 85-265/120-380 4000/- 82 62.0*45.0*22.5 CE,RoHS
FA15-220S05F2D4 15 85-265/120-380 4000/- 74 62.0*45.0*22.5 CE,RoHS
FA15-220S3V3F2D4 10 85-265/120-380 4000/- 70 62.0*45.0*22.5 CE,RoHS
FA15-220SXXF2N4(-T)(-TS)
85-305/120-430 4000/- 62.0*45.0*22.5
FA15-220S24F2N4 15 85-305/120-430 4000/- 86 62.0*45.0*22.5 CE,RoHS
FA15-220S15F2N4 15 85-305/120-430 4000/- 85 62.0*45.0*22.5 CE,RoHS
FA15-220S12F2N4 15 85-305/120-430 4000/- 84 62.0*45.0*22.5 CE,RoHS
FA15-220SXXG2N4
85-305/100-430 4000/- 47.6*26.8*23.5
FA15-220S24G2N4 15 85-305/100-430 4000/- 86 47.6*26.8*23.5 CE,UL
FA15-220S15G2N4 15 85-305/100-430 4000/- 85 47.6*26.8*23.5 UL
FA15-220S12V5G2N4 15 85-305/100-430 4000/- 85 47.6*26.8*23.5 CE,UL
FA15-220S12G2N4 15 85-305/100-430 4000/- 85 47.6*26.8*23.5 CE,UL
FA15-220S05G2N4 15 85-305/100-430 4000/- 85 47.6*26.8*23.5 CE,UL
FA15-220SXXY2N3
85-305/120-430 4000/- 50.8*25.4*15.16
FA15-220S24Y2N3 15 85-305/120-430 4000/- 86 50.8*25.4*15.16 CE,RoHS
FA15-220S15Y2N3 15 85-305/120-430 4000/- 87 50.8*25.4*15.16 CE,RoHS
FA15-220S12V8Y2N3 15 85-305/120-430 4000/- 86 50.8*25.4*15.16 -
FA15-220S12V5Y2N3 15 85-305/120-430 4000/- 86 50.8*25.4*15.16 -
FA15-220S12Y2N3 15 85-305/120-430 4000/- 86 50.8*25.4*15.16 CE,RoHS
FA15-220S05Y2N3 15 85-305/120-430 4000/- 82 50.8*25.4*15.16 CE,RoHS
FA15-380S05H24
180-460/- 4000/- 70.0*48.0*23.5
FA15-380S05H24 15 180-460/- 4000/- 77 70.0*48.0*23.5 -
FA15-380SXXG9N4
176-528/248-745 3600/- 40.04*20.0*15.0
FA15-380S24G9N4 15 176-528/248-745 3600/- 84 40.04*20.0*15.0 -
FA15-380S15G9N4 15 176-528/248-745 3600/- 83 40.04*20.0*15.0 -
FA15-380S12G9N4 15 176-528/248-745 3600/- 82 40.04*20.0*15.0 -
FA15-380S05G9N4 15 176-528/248-745 3600/- 81 40.04*20.0*15.0 -
DA20-220SXXG2N4(-T)(-TS)
85-305/120-430 4000/- 54.0*29.3*23.7
DA20-220S24G2N4 20 85-305/120-430 4000/- 88 54.0*29.3*23.7 CE,CB,RoHS
DA20-220S15G2N4 20 85-305/120-430 4000/- 86 54.0*29.3*23.7 CE,CB,RoHS
DA20-220S12V5G2N4 20 85-305/120-430 4000/- 86 54.0*29.3*23.7 CE,CB,RoHS
DA20-220S12G2N4 20 85-305/120-430 4000/- 86 54.0*29.3*23.7 CE,CB,RoHS
DA20-220S09G2N4 20 85-305/120-430 4000/- 85 54.0*29.3*23.7 -
DA20-220S05G2N4 20 85-305/120-430 4000/- 84 54.0*29.3*23.7 CE,CB,RoHS
FA20-220E05XXH2N4
85-265/120-370 4000/- 70.0*48.0*24.0
FA20-220E0524H2N4 20 85-265/120-370 4000/- 78 70.0*48.0*24.0 -
FA20-220E0524H2N4 20 85-265/120-370 4000/- 78 70.0*48.0*24.0 -
FA20-220E0512H2N4 20 85-265/120-370 4000/- 78 70.0*48.0*24.0 -
FA20-220E0512H2N4 20 85-265/120-370 4000/- 78 70.0*48.0*24.0 -
FA20-220H05XXXXH2D4(-T)(-TS)
85-265/120-370 4000/- 70.0*48.0*24.0
FA20-220H051212H2D4 20 85-265/120-370 4000/- 79 70.0*48.0*24.0 CE,RoHS
FA20-220H051212H2D4 20 85-265/120-370 4000/- 79 70.0*48.0*24.0 CE,RoHS
FA20-220H051515H2D4 20 85-265/120-370 4000/- 79 70.0*48.0*24.0 CE,RoHS
FA20-220H051515H2D4 20 85-265/120-370 4000/- 79 70.0*48.0*24.0 CE,RoHS
FA20-220SXXF2D4(-T)(-TS)
85-265/120-380 4000/- 62.0*45.0*22.5
FA20-220S28F2D4 20 85-265/120-380 4000/- 86 62.0*45.0*22.5 -
FA20-220S24F2D4 20 85-265/120-380 4000/- 85 62.0*45.0*22.5 -
FA20-220S15F2D4 20 85-265/120-380 4000/- 83 62.0*45.0*22.5 -
FA20-220S12F2D4 20 85-265/120-380 4000/- 83 62.0*45.0*22.5 -
FA20-220S09F2D4 20 85-265/120-380 4000/- 81 62.0*45.0*22.5 -
FA20-220S05F2D4 17.5 85-265/120-380 4000/- 77 62.0*45.0*22.5 -
FA20-220S3V6F2D4 20 85-265/120-380 4000/- 74 62.0*45.0*22.5 -
FA20-220SXXF2N5 (-T)(-TS)
85-305/120-430 4200/- 62.0*45.0*22.5
FA20-220S24F2N5 20 85-305/120-430 4200/- 84 62.0*45.0*22.5 -
FA20-220S15F2N5 20 85-305/120-430 4200/- 83 62.0*45.0*22.5 -
FA20-220S12F2N5 20 85-305/120-430 4200/- 83 62.0*45.0*22.5 -
FA20-220S09F2N5 20 85-305/120-430 4200/- 82 62.0*45.0*22.5 -
FA20-220S05F2N5 20 85-305/120-430 4200/- 77 62.0*45.0*22.5 -
FA20-220SXXP2D4
85-265/120-380 4000/- 53.8*28.8*23.5
FA20-220S48P2D4 20 85-265/120-380 4000/- 88 53.8*28.8*23.5 -
FA20-220S24P2D4 20 85-265/120-380 4000/- 88 53.8*28.8*23.5 CE,RoHS
FA20-220S15P2D4 20 85-265/120-380 4000/- 85 53.8*28.8*23.5 CE,RoHS
FA20-220S12P2D4 20 85-265/120-380 4000/- 84 53.8*28.8*23.5 CE,RoHS
FA20-220S09P2D4 20 85-265/120-380 4000/- 83 53.8*28.8*23.5 CE,RoHS
FA20-220S05P2D4 20 85-265/120-380 4000/- 82 53.8*28.8*23.5 CE,RoHS
FA20-300SXXH2D4(-T)(-TS)
90-528/100-745 4000/- 70.0*48.0*24.0
FA20-300S24H2D4 20 90-528/100-745 4000/- 84 70.0*48.0*24.0 CE,RoHS
FA20-300S15H2D4 20 90-528/100-745 4000/- 83 70.0*48.0*24.0 CE,RoHS
FA20-300S12H2D4 20 90-528/100-745 4000/- 83 70.0*48.0*24.0 CE,RoHS
FA20-300S05H2D4 20 90-528/100-745 4000/- 78 70.0*48.0*24.0 CE,RoHS
DA20-220H051212G93
165-265/233-735 3000/- 70.0*48.0*22.0
DA20-220H051212G93 20 165-265/233-735 3000/- 83 70.0*48.0*22.0 -
DA20-220H051212G93 20 165-265/233-735 3000/- 83 70.0*48.0*22.0 -
SIP45
85-264/120-370 4000/- 35.0*90.0*54.5
SIP45-48 45.12 85-264/120-370 4000/- 91 35.0*90.0*54.5 -
SIP45-24 44.88 85-264/120-370 4000/- 90 35.0*90.0*54.5 -
SIP45-12 30 85-264/120-370 4000/- 88 35.0*90.0*54.5 -
SIP45 20 85-264/120-370 4000/- 82 35.0*90.0*54.5 -
FA10-220DXXE2D4
-/120-430 4000/- 96.0 x 53.8 x 34.0
SIP20
85-264/120-370 4000/- 17.5*90.0*54.5
SIP20-48 20.16 85-264/120-370 4000/- 87 17.5*90.0*54.5 -
SIP20-24 20.16 85-264/120-370 4000/- 86 17.5*90.0*54.5 -
SIP20-12 18 85-264/120-370 4000/- 85 17.5*90.0*54.5 -
SIP20-5 12.5 85-264/120-370 4000/- 80 17.5*90.0*54.5 -
DA24-220SXXG2N3
85-265/120-380 3000/- 50.8*39.0*22.8
DA24-220S24G2N3 24 85-265/120-380 3000/- 85 50.8*39.0*22.8 -
DA24-220S12G2N3 24 85-265/120-380 3000/- 83 50.8*39.0*22.8 CE,RoHS
DA24-220S7V5G2N3 24 85-265/120-380 3000/- 80 50.8*39.0*22.8 -
DA24-220S05G2N3 15 85-265/120-380 3000/- 77 50.8*39.0*22.8 -
DA24-220S3V3G2N3 9.9 85-265/120-380 3000/- 75 50.8*39.0*22.8 -
FA24-220SXXG3N3
85-265/120-380 2500/- 39.0*25.0*22.0
FA24-220S24G3N3 24 85-265/120-380 2500/- 87 39.0*25.0*22.0 -
FA24-220S15G3N3 24 85-265/120-380 2500/- 86 39.0*25.0*22.0 -
FA24-220S12G3N3 24 85-265/120-380 2500/- 85 39.0*25.0*22.0 -
FA24-220S05G3N3 24 85-265/120-380 2500/- 79 39.0*25.0*22.0 -

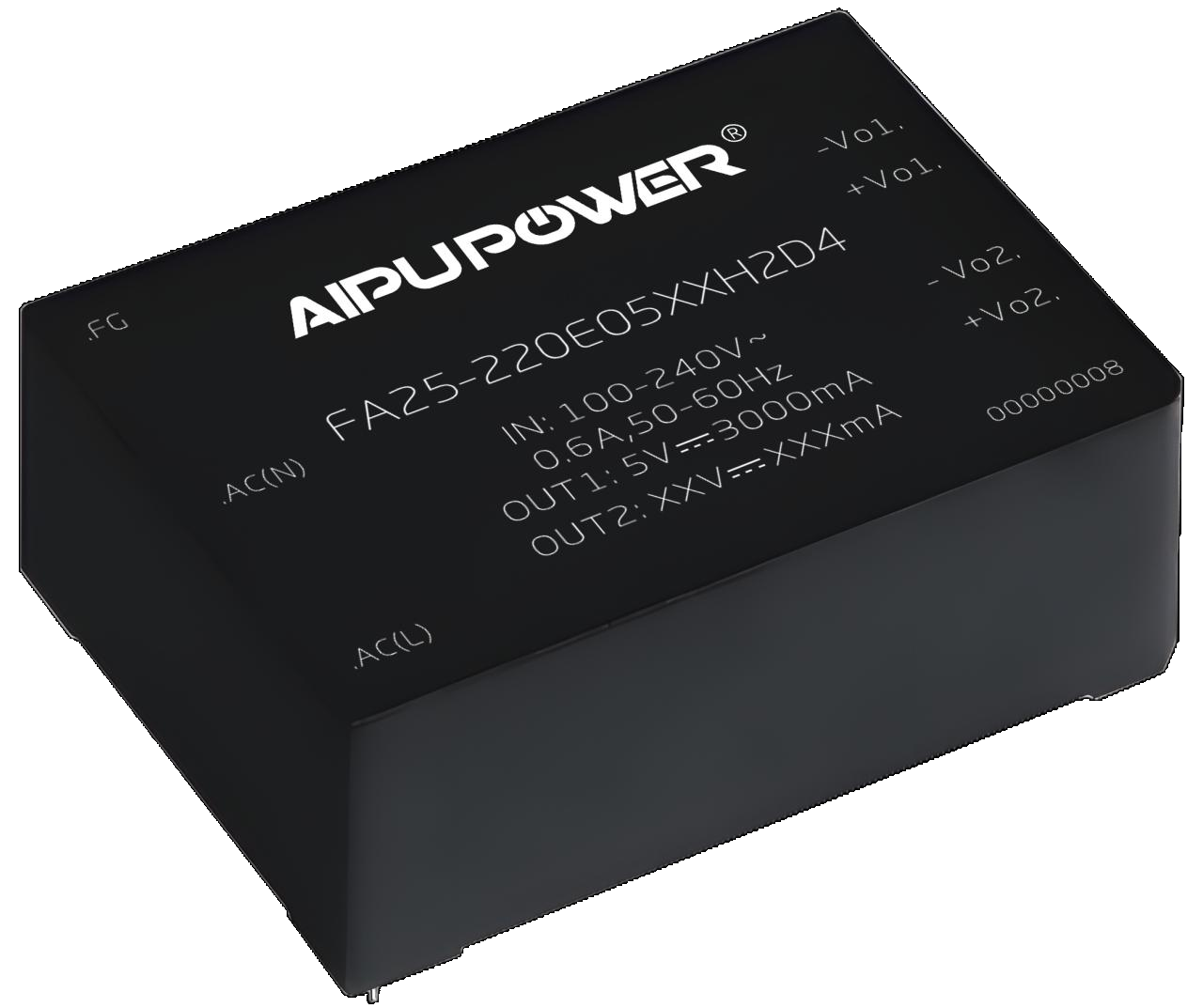

FA25-220DXXH2D4
85-265/120-380 4000/- 70.0*48.0*23.5
FA25-220D15H2D4 25 85-265/120-380 4000/- 83 70.0*48.0*23.5 -
FA25-220D12H2D4 25 85-265/120-380 4000/- 82 70.0*48.0*23.5 -
FA25-220SXXH2D4 (-T)(-TS)
85-305/120-430 4200/-
