Introduction

Overcurrent protection, commonly abbreviated as OCP, is a power-supply protection function that responds when output or switch current exceeds a defined limit. Its purpose is to keep excessive current from overstressing the converter, its load, PCB conductors, connectors and other components in the power path.

OCP is especially important in low-voltage, high-current point-of-load and load-point power systems. A small change in load impedance can produce a large change in current, while a short circuit can rapidly increase electrical and thermal stress. However, “OCP” does not describe one universal behavior. A supply may limit current continuously, reduce the allowed current as the output collapses, stop and retry, or remain shut down until it is reset.

This article explains how common OCP methods work, how they differ, and what engineers should verify when selecting or testing a power supply. The exact thresholds and recovery behavior of any specific module must always be confirmed in that product’s datasheet.

What Is Overcurrent Protection (OCP)?

OCP monitors a current-related signal and intervenes when the measured value reaches a designed threshold. Depending on the converter and controller, that signal may represent switch current, inductor current, input current or output current.

The protection action may change the pulse width, skip switching cycles, reduce switching frequency, shut the converter down temporarily or latch it off. OCP therefore has two distinct parts:

● Detection: how and where current is measured, including the threshold, accuracy and response time.

● Fault response: what the converter does after the threshold is reached and how it returns to normal operation.

This distinction matters. Two supplies may both list “overcurrent protection” while behaving very differently during overload or short-circuit conditions.

OCP is also different from ordinary output regulation. Voltage regulation controls the output during the specified operating range. OCP handles operation beyond the intended load range. It should not be assumed to replace an external fuse, circuit breaker or system-level protection device where those are required by the application.

Why OCP Matters in Low-Voltage, High-Current Supplies

Low-voltage, high-current systems place demanding conditions on the power path:

● Small load-impedance changes can cause large current changes.

● A short circuit can produce high fault current unless the converter reacts quickly.

● Prolonged operation near a current limit can raise the temperature of switches, inductors, rectifiers, PCB traces and connectors.

● Stored energy in inductance and capacitance affects the transient response when a fault begins or clears.

A useful OCP design must limit component stress while still allowing expected transients, such as load steps or the charging of downstream capacitance. A threshold set too close to the normal peak load may cause nuisance trips. A threshold set too high, or a response that is too slow, may allow excessive stress before protection takes effect.

How a Power Supply Detects Overcurrent

Switching converters commonly infer current using one of several methods:

● Sense resistor: measures the voltage across a known resistance. It can provide a direct and accurate signal, but the resistor introduces power loss and must be sized for the expected current and pulse energy.

● Inductor DCR sensing: uses the inductor winding resistance as part of the current-sensing network. It can reduce sensing loss, but accuracy depends on component tolerance, temperature and network matching.

● MOSFET RDS(on) sensing: estimates current from the voltage across a conducting MOSFET. It avoids a separate high-current shunt but is affected by the MOSFET’s on-resistance variation and temperature coefficient.

● Integrated current-sense element or SenseFET: derives a scaled current signal inside the power stage. It can reduce external loss and component count, while accuracy and implementation remain controller-specific.

No sensing method is universally best. Selection depends on current level, accuracy, allowable loss, temperature range, cost, layout and the converter controller.

Cycle-by-Cycle Peak Current Limiting

Current-Mode Control

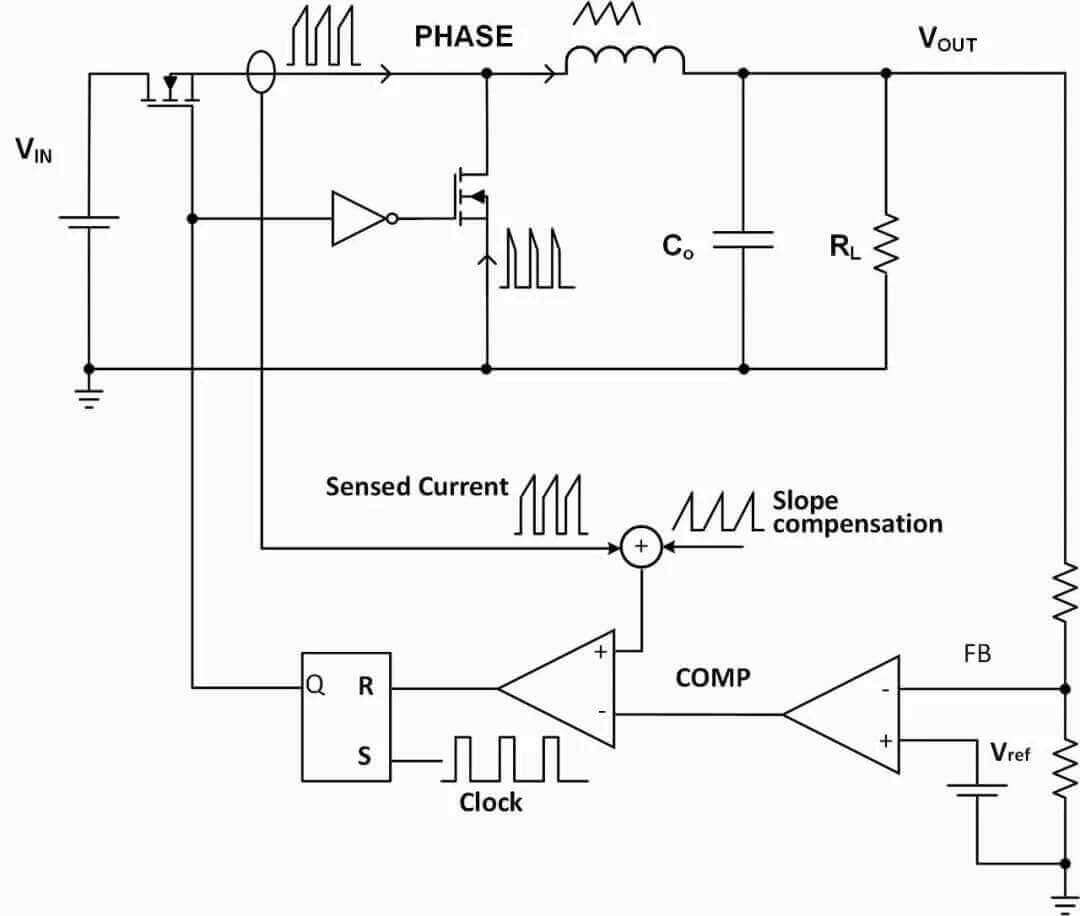

In a peak current-mode buck converter, a clock event turns on the high-side switch at the start of a switching cycle. Inductor current then rises and is compared with a control threshold. When the sensed current reaches that threshold, the controller turns the high-side switch off for the remainder of the cycle.

Because the comparison occurs on each switching cycle, cycle-by-cycle limiting can react quickly to an overload. It limits peak inductor or switch current, but it does not necessarily hold output current at one exact value. The relationship between peak, valley and average current depends on inductance, switching frequency, input and output voltage, control behavior and propagation delay.

Minimum On-Time Challenge

Real controllers have a minimum on-time: once the high-side switch turns on, it cannot always turn off instantaneously. During a severe short circuit, the output voltage may collapse and the required duty cycle may become smaller than the controller can produce.

If current rises during the enforced on-time and does not decay sufficiently during the off-time, it can increase over successive cycles even though peak limiting is active. Blank-time and propagation-delay effects can add further overshoot. For this reason, some converter designs combine peak limiting with valley-current supervision, skipped cycles, frequency reduction or a secondary shutdown response.

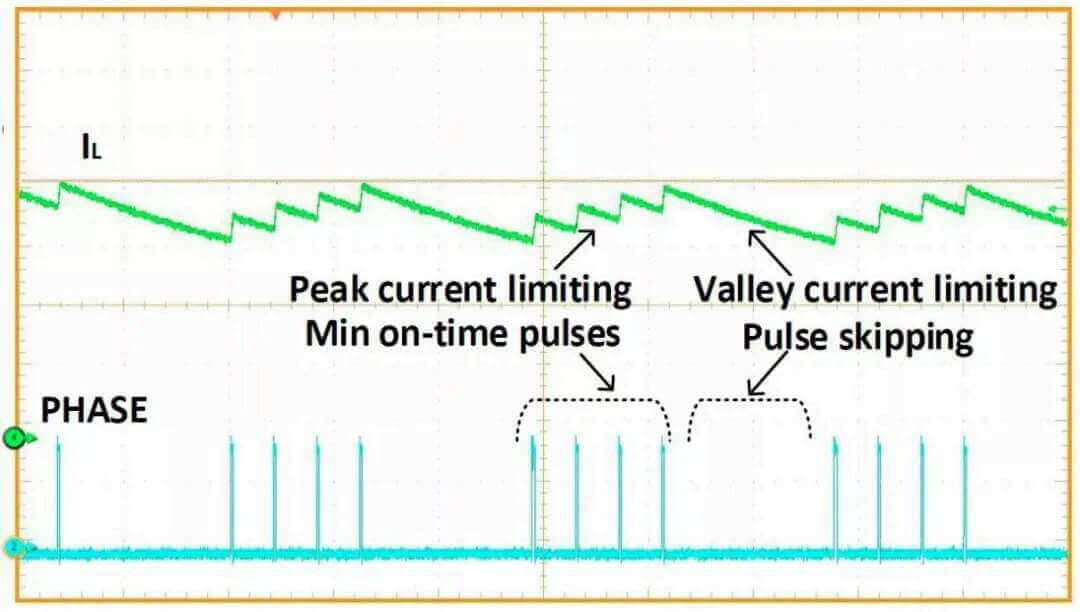

Valley Current Limiting and Frequency Foldback

Valley current limiting monitors the lower point of the inductor-current waveform, typically during the low-side conduction interval in a synchronous converter. If current has not fallen below the permitted valley threshold, the controller can delay or skip the next high-side turn-on. This gives the inductor current more time to decay and helps prevent cumulative current rise under conditions where minimum on-time constrains peak control.

Some controllers also use frequency foldback during a fault. Reducing switching frequency increases the switching period, which can provide more time for current to fall and make the required on-time less constrained by the controller’s minimum on-time. The resulting change in current ripple and average current is topology- and implementation-dependent.

Valley limiting and frequency foldback are controller strategies, not guaranteed characteristics of every power supply. Their thresholds and operating sequence must be verified in the controller documentation or the exact module datasheet.

Common OCP Response and Recovery Modes

The current-detection method does not by itself define how a supply behaves throughout a sustained fault. Common engineering approaches include the following.

Constant-Current Limiting

When the load demands more than the allowed current, the converter reduces its output voltage while attempting to hold current near a limit. This can support loads that need controlled current during startup or overload, but a prolonged low-voltage fault may still create substantial dissipation. The allowed duration and thermal conditions must be checked.

Foldback Current Limiting

In foldback current limiting, the permitted output current decreases as output voltage falls. This can reduce power dissipation during a short circuit compared with constant-current limiting. The trade-off is that some loads may not restart cleanly because the available current in the folded-back region is lower than their startup demand.

Foldback current limiting should not be confused with frequency foldback. One changes the allowed fault-current characteristic; the other changes switching frequency as part of controller operation.

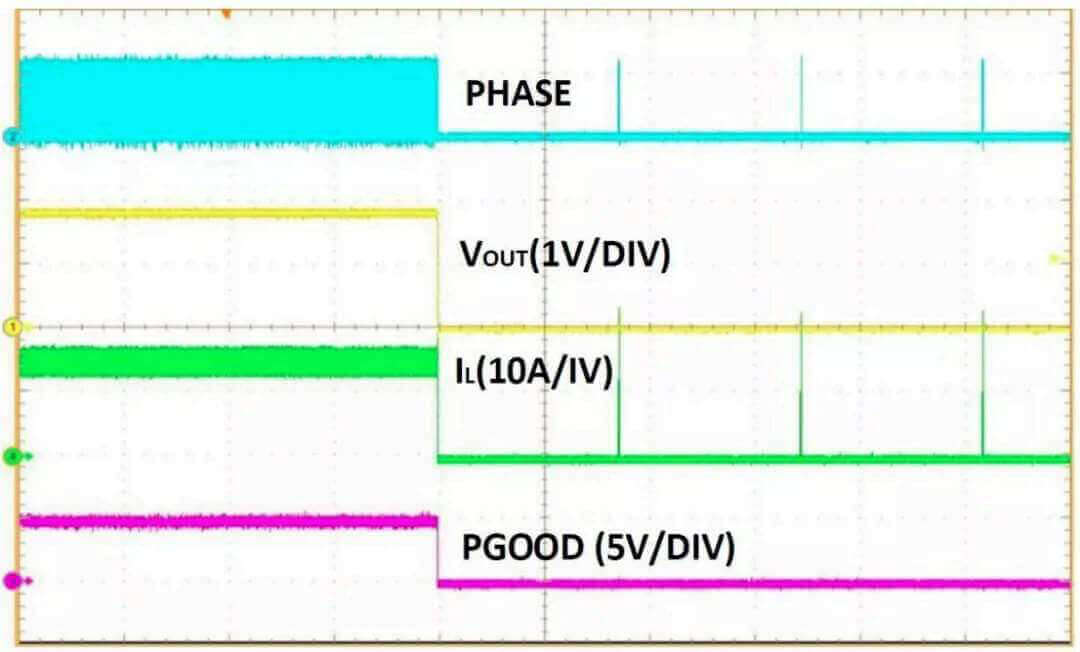

Hiccup or Retry Mode

In hiccup mode, the converter detects a sustained fault, stops switching for a defined interval and then attempts to restart. If the fault remains, the shutdown-and-retry sequence repeats.

The off-time can reduce average fault current and heating, but the load experiences repeated output pulses. Engineers should consider whether repeated startup attempts are acceptable for the downstream circuit and whether the fault can clear between retries.

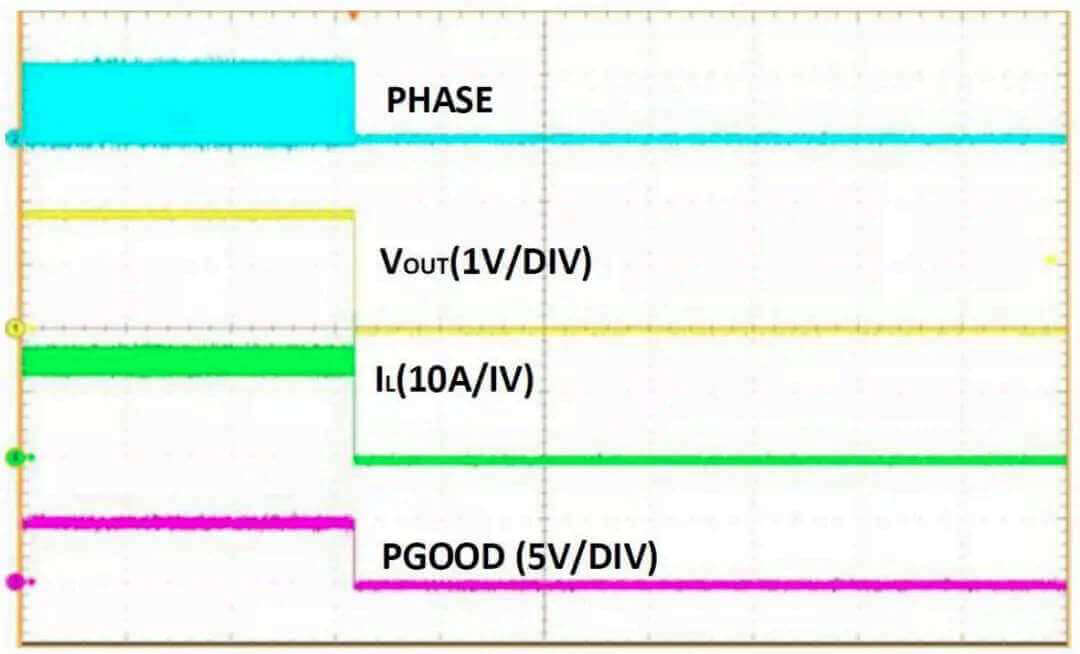

Latch-Off Protection

With latch-off behavior, the converter stops after the fault criterion is met and does not restart automatically. Recovery may require cycling input power, toggling an enable input or applying another specified reset action.

Latch-off prevents repeated energization of a persistent fault, but it requires system-level reset planning. The reset method must be taken from the specific device documentation.

These descriptions are general engineering categories. Individual products may use different terminology, thresholds, timers or combinations of methods.

Reverse Current Is a Separate Design Concern

Forward overcurrent protection does not automatically protect against reverse current. In a synchronous buck converter operating in a mode that allows bidirectional inductor current, current can flow from the output back through the power stage under some conditions.

If reverse-current blocking or limiting is required, it must be implemented by the converter or by external circuitry. Designers should not infer reverse-current protection from an OCP statement alone; it must be explicitly documented.

OCP Design Trade-Offs

An effective protection design balances several competing requirements:

● Normal transient tolerance versus fast fault response: brief load steps and capacitor charging should not cause unnecessary trips, but damaging faults must be limited promptly.

● Threshold margin versus component stress: tolerances in sensing, temperature and propagation delay affect the actual peak current.

● Availability versus thermal protection: continuous current limiting may keep a load operating, while hiccup or latch-off can reduce sustained fault stress.

● Automatic recovery versus fault containment: automatic restart is convenient for temporary overloads; latch-off may be preferable when repeated energization is undesirable.

● Load startup versus foldback: a foldback characteristic that protects the converter may provide too little current for some loads to restart.

● Converter protection versus system protection: internal OCP protects the power stage within defined conditions, but wiring, connectors, PCB traces and the load may require coordinated external protection.

Protection testing should consider more than a single steady overload. Relevant tests may include abrupt shorts, resistive overloads, startup into a capacitive load, fault removal, repeated retry cycles and operation at temperature extremes. Test conditions must remain within the product manufacturer’s documented limits.

What Engineers Should Check in a Datasheet

Before relying on a module’s OCP function, verify the exact product documentation for:

1. Whether OCP is specified and under what test conditions.

2. The trip point or current-limit range, including tolerances where stated.

3. Whether the specified value refers to input, switch, inductor or output current.

4. The response mode: constant-current, foldback, hiccup, latch-off or another method.

5. Recovery behavior and any required reset action.

6. Short-circuit duration limits and thermal derating requirements.

7. Whether reverse-current blocking or protection is explicitly provided.

8. Any conditions related to input voltage, output voltage, temperature, airflow or external components.

Do not assume that two models in the same broad product category use identical protection behavior. Confirm the exact model and revision of the datasheet.

Conclusion

Power supply OCP is not a single standardized response. It combines a current-detection method with a defined action during overload or short-circuit conditions. Cycle-by-cycle peak limiting provides fast control of switch or inductor current, while valley limiting and frequency foldback can address current buildup in particular converter designs. Constant-current, foldback, hiccup and latch-off responses then determine how the supply behaves during a sustained fault and how it recovers.

For system designers, the key questions are practical: What current is being measured? What is the threshold and tolerance? What happens while the fault remains? How does the supply restart? The answers must come from the exact power-supply datasheet and should be validated under realistic load, startup and thermal conditions.
